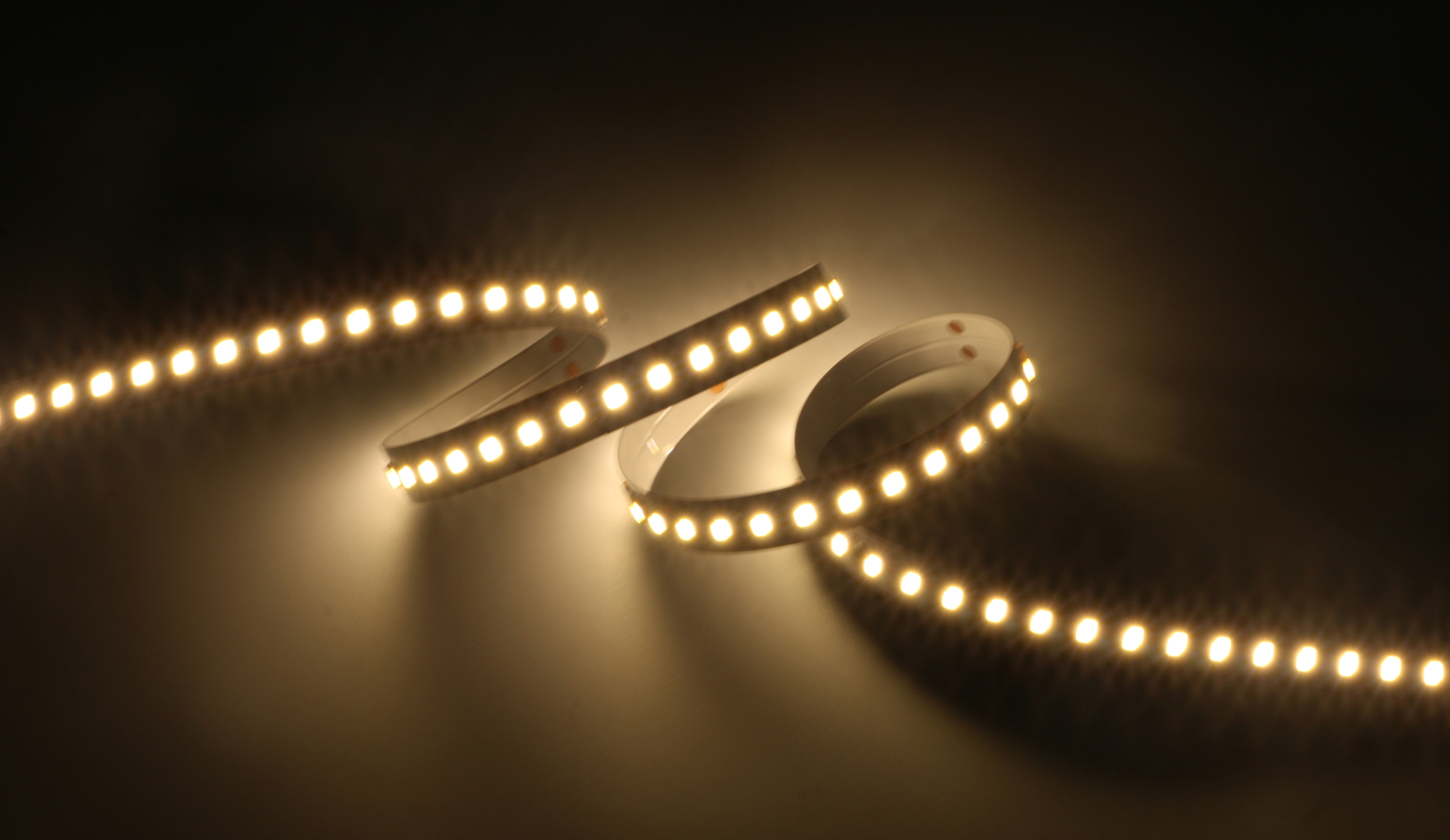

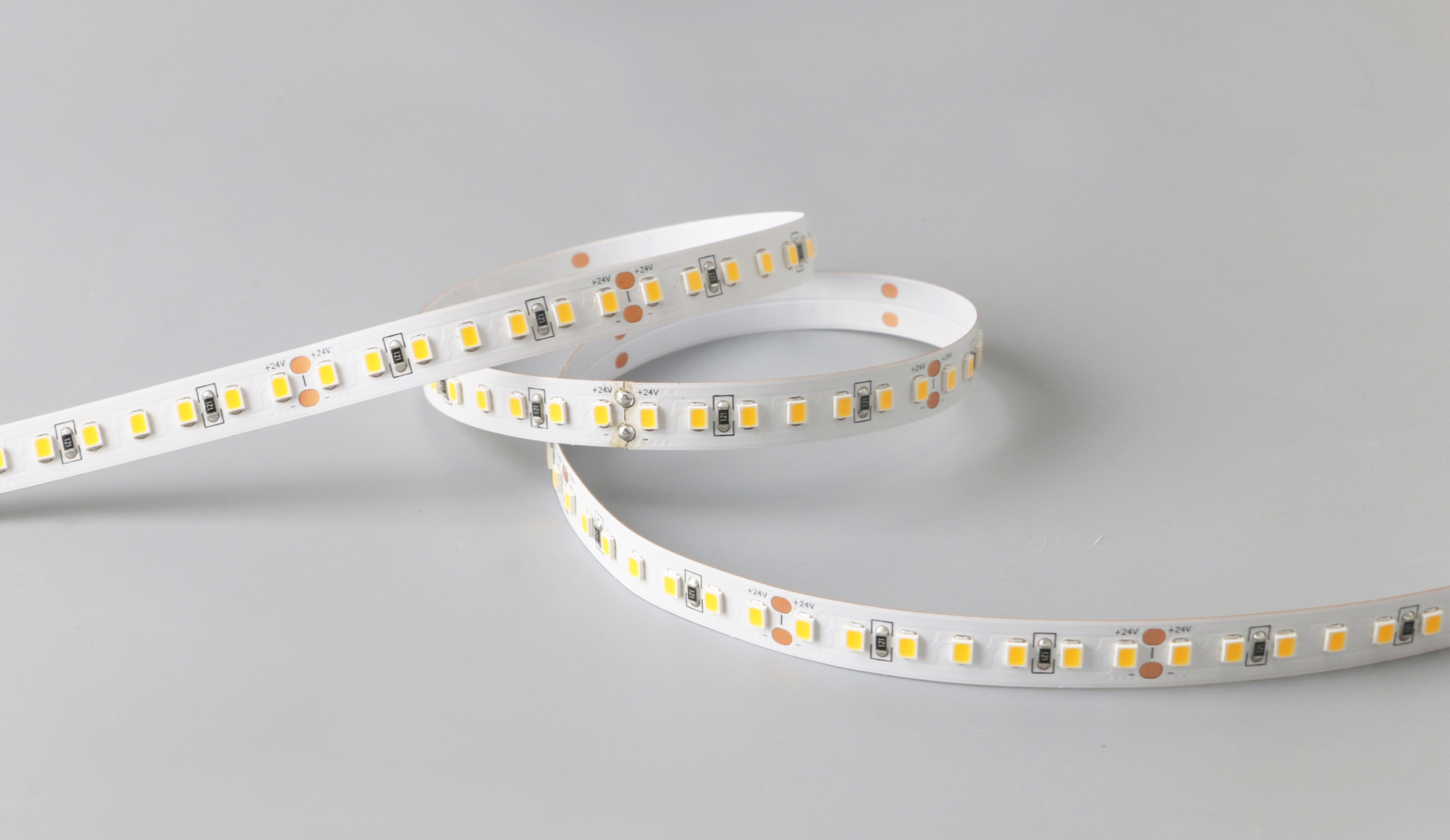

      Classical Series - White 24V 140LED/M 10mm - LD36

      Features
      -
      1. Classical C.V. (Constant Voltage) series is the most classical, popular and cost-effective product in the market.
      2. Decorating backlight and indirect lighting for showcase, shelf, cabinet, billboard, signage, hotel, garden, bridge, corridor, ceiling,stair, floor, cove, theatre, lift etc.
      Parameters
      -
      Part No.  Dimension Increment LED Type LED Qty Voltage Power CCT /
      Wavelength      		 Brightness
      @4000K&CRI80

      Light Efficiency

      @4000K&CRI80

      		 Brightness
      @4000K&CRI90

      Light Efficiency

      @4000K&CRI90

      Beam

      Angle

      		 IP Rating
      GL-N2835XX-24-CV-140-LD36 L5000*W10*H1mm
      [L197*W0.4*H0.04in.]

      50mm

      [1.97in.]

      SMD2835

      140LED/M

      [42LED/ft.]

      24VDC

      14.4W/M

      [4.39W/ft.]

      		 2700K
      3000K
      3500K
      4000K
      5000K
      6500K      		 1700lm/M
      [520lm/ft.]       		 118lm/W 1450lm/M
      [440lm/ft.]       		 100lm/W 120°

      IP20/

      IP54/

      IP54 Plus/

      IP65/

      IP67/

      IP67 Plus/

      IP68
      [Dry/Damp/Wet]
      Download
      -

      • Datasheet - CLASSICAL SERIES - 140LED/M - LD36

      • Spectrum Report - Classical Series - 140LED/M - LD36

      • IES Report - Classical Series - 140LED/M - LD36

      Details
      -





      Application

      Accent and wall grazing lighitng for showcase, shelf, cabinet, signage, hotel, garden, bridge, corridor, ceiling, stair, floor, cove, theatre, lift etc.
